如果你建立一个强大的PC,哟u want to keep it safe. This means using a surge protector at a bare minimum. But what if you want to go the extra mile to protect your gear? In that case, you need a universal power supply (UPS), sometimes called an “不间断的电源”。那么，您为什么要使用这些设备之一？
The reason is that sudden power loss is one of the leading causes of computer damage. Power surges are also another leading factor, and a decent power strip will prevent them. There aren’t really that many other things that can happen to a computer other than fan damage. And fan damage is easy to repair. On the other hand, damage from power loss can easily be permanent. Similar, long-term damage can occur from voltage drops, brownouts, and other power problems.

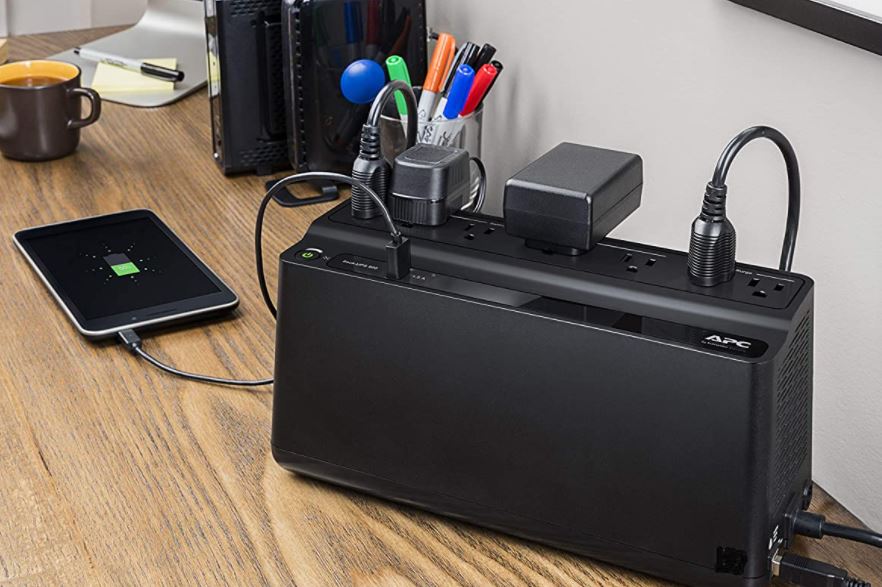

In order to keep your computer safe, a UPS system is essential. A UPS system is, at its heart, fairly simple. It’s a big, beefy power strip with a battery inside. The concept is also simple. A UPS is designed to provide power to your electronics in the event of a blackout. How long it will last can vary from minutes to hours depending on the exact UPS. As you can see, there are a variety of devices that could benefit from a UPS. For instance, if someone in the home is on a CPAP system, a battery backup can be helpful for safety. Even game consoles, audio equipment, andsecurity lighting.
UPS不仅仅是为了安全。这也是convenience. For example, imagine you’re working on your laptop, and you’re plugged into the wall. While you’re in the middle of editing an important document, a storm blows in and the power goes out. No problem, right? Your laptop is still running on battery power. You’ll have plenty of time to save your progress before shutting down. On the other hand, desktop computers don’t have the same backup. If you were working on a PC, you would have lost your data. Ouch!
Even a cheap UPS would provide enough of a window for you to comfortably save your document and shut down. However, there are other features you need to look at. For instance, a more powerful UPS could allow you to keep on working through the storm. Other UPSs come with software that will shut down your computer safely when battery power kicks in. This means your computer will power down without getting damaged, even when you’re not at home. Similarly, they come in different sizes, and with different power outputs.
Finally, you need to consider whether you’re buying a pure sine wave power supply or a modified sine wave power supply. Both types have their own benefits and drawbacks, but it’s important to get the right kind for your needs. So, which one is the best for your electronics? Let’s take a closer look, and find out!
What Types of UPS Are There? What Can They Handle?
Before we go any further, let’s stop to understand the different benefits that universal power supplies can offer. In general, there are three types of UPS: standby, line-interactive, and double-conversion. These types of power supply offer an increasing number of benefits as the technology gets more advanced.
这是可以通过UPS解决的常见电源问题的简短概述。基本待机UPS系统可以处理：
- Blackouts. You probably already know what a blackout is. It’s when you completely lose power, whether for minutes or days. Most blackouts are the result of weather and accidents, and preventing them is the primary purpose of a UPS.
- Power surges. These are short spikes in the voltage that are high enough to cause severe damage to electronics. Power surges are almost always caused by a nearby lightning strike, although other causes are possible. While it’s technically possible to build a UPS without a surge protector, any respectable UPS will have one.
- 布朗特. A brownout is similar to a blackout, in that it represents a drop in power. However, in a brownout, you’re still receiving partial voltage. Brownouts sometimes happen due to accidents. That said, the cause is most often intentional. Power companies regularly lower voltage when the grid is under stress, to avoid a total blackout.
A line-interactive power supply uses more advanced circuitry to handle more complex situations. In addition to the above situations, a line-interactive UPS can deal with a couple extra scenarios:
- 电压超过电压. Over voltage is similar to a power surge, since there’s too much voltage on the line. But power surges are short, violent spikes. Over voltage is a slight excess in current that lasts for an extended period of time. A simple surge protector will either allow the current through or shut it off if it’s too high. An over voltage circuit will allow only the correct amount of voltage.
- Voltage sags. Voltage sags are similar to brownouts, because they’re a drop in voltage. However, while brownouts typically last for hours, voltage sags are sudden, and only last for seconds. They also tend to be more severe. As a result, dealing with them requires more advanced circuitry.
对于大多数电子产品，这些是您真正需要担心的唯一问题。但是，还有其他一些问题，例如谐波失真，频率噪声和频率变化。这些是电流中非常小的不规则性，可能会影响非常敏感的电子设备。要管理它们，需要双转换UPS。

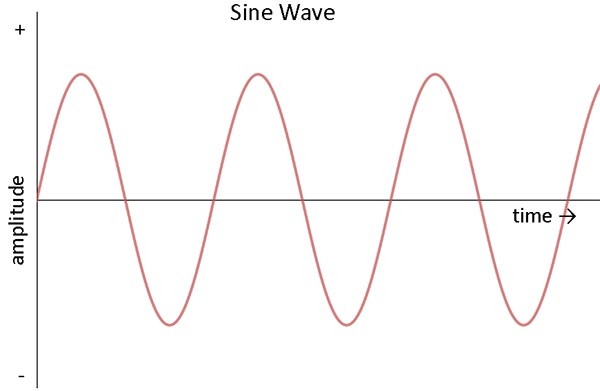

What is a Sine Wave?

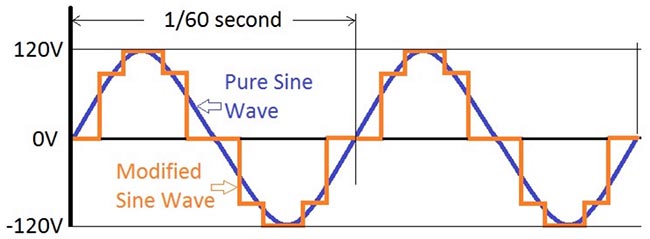

When an electrical current is first released from a battery, it takes the form of direct current (DC). Without going too far into the woods, in DC power, the current runs continually in one direction. To power a standard outlet, this electricity needs to be converted from DC to alternating current (AC). In an AC current, the voltage oscillates. If you were to map this oscillation, it would take the form of a smooth, curving sine wave arcing up and down. When this current comes from a generator, the waveform is nice and smooth. But when it has to be converted from DC, it looks blocky, like a series of rectangles.
问题在于，块状波形可能会引起敏感设备的问题。例如，在音频线上，块状波听起来像绒毛或静态。该正弦波可以用一系列过滤器和其他转换器固定。当波浪块状时，它被称为“修改”的正弦波，因为它不是实际的波浪。清理波浪后，由于波浪已经平滑，因此称为“纯”正弦波。但是，并不总是需要清理浪潮，而且花费比独自一人要花费更多。
When is a Modified Sine Wave UPS Okay?
So, when is it okay to use a modified sine wave UPS system. The good news is that most computers aren’t sensitive enough for them to be a problem. They’ll make your speakers sound a bit fuzzy, but only as long as the power is out. Remember, under normal circumstances, you’re getting power directly from the power company. The modified sine wave only kicks in when normal power has been interrupted.
同样，修改的正弦波对于许多家用电子设备都会有用。您的电动剃须刀和烤面包机仍然可以正常运行。即使是微波炉也可以正常工作，尽管您可能会有一些怪异的烹饪时间。电视和监视器可能会变得模糊，但不足以无法使用。这是否是一个问题取决于您使用的UPS的目的。无论如何，这不是您的PC的主要问题。大多数待机和线路相互作用的UPS单元都是通过设计修改的正弦波。
When Should I Use a Pure Sine UPS?
So, when should you be using a pure sine UPS? In general, you should be using them any time you need a double-conversion power supply. As a matter of fact, virtually all double-conversion power supplies provide a pure sine wave. On the other hand, this feature is relatively uncommon on other types of power supply. Pure sine UPS systems are more expensive than modified sine UPS systems, but are far more versatile.
A pure sine UPS is ideal for electric devices that need an extremely clean signal. You can run any appliance without having any issues. This is also ideal if you’re a gamer and want to keep on playing through a storm. With a pure sine system, you won’t have to worry about your picture getting fuzzy. Not only that, but a pure sine current is essential for sensitive medical devices like CPAP machines and heart monitors. In general, pure sine power is required for anything Energy Star 80 or better with an Active PFC power supply. However, this is far from a hard and fast rule. Check your owner’s manual for more details. Finally, pure sine power is required for Apple’s iMac desktops.
