自动Vox T1400无线备用摄像头套件评论

这些天，许多汽车配备了备用摄像头，以协助停车和倒车。这是一个漂亮的功能，特别是如果平行停车的想法使您在冷汗中爆发出来。但是，如果您的汽车不提供此功能怎么办？这可能是不便的。不仅如此，备用摄像头还可以帮助降低您的保险费率，具体取决于您的保险公司。在一个每美元计算的世界中，它实际上可以随着时间的推移为您节省金钱。

Of course, backup cameras come with a variety of features, and not all of them are equally good. For example, some cameras offer night vision, while others rely on your vehicle’s backup lights. They offer different resolutions, and different mounting options. Wiring can also be a concern. For example, if you need to run a wire all the way through your car’s interior, it can be a real pain.

Enter the Auto-Vox T1400 Wireless Backup Camera. This camera uses wireless video transfer, rather than wired transfer. As a result, installation is relatively painless, and can be done in less than half an hour. Moreover, you’re looking at a sturdy, resilient design that can be mounted on most vehicles. No matter what kind of car or truck you drive, the T1400 will install easily on your license plate bracket. But what else does it have to offer? Does it live up to the hype, or are you better up going with another option? We’ll go over everything, from tip to tail. When we’re done, we’ll summarize what we’ve learned, and render a final verdict. Let’s begin!

Overall Design

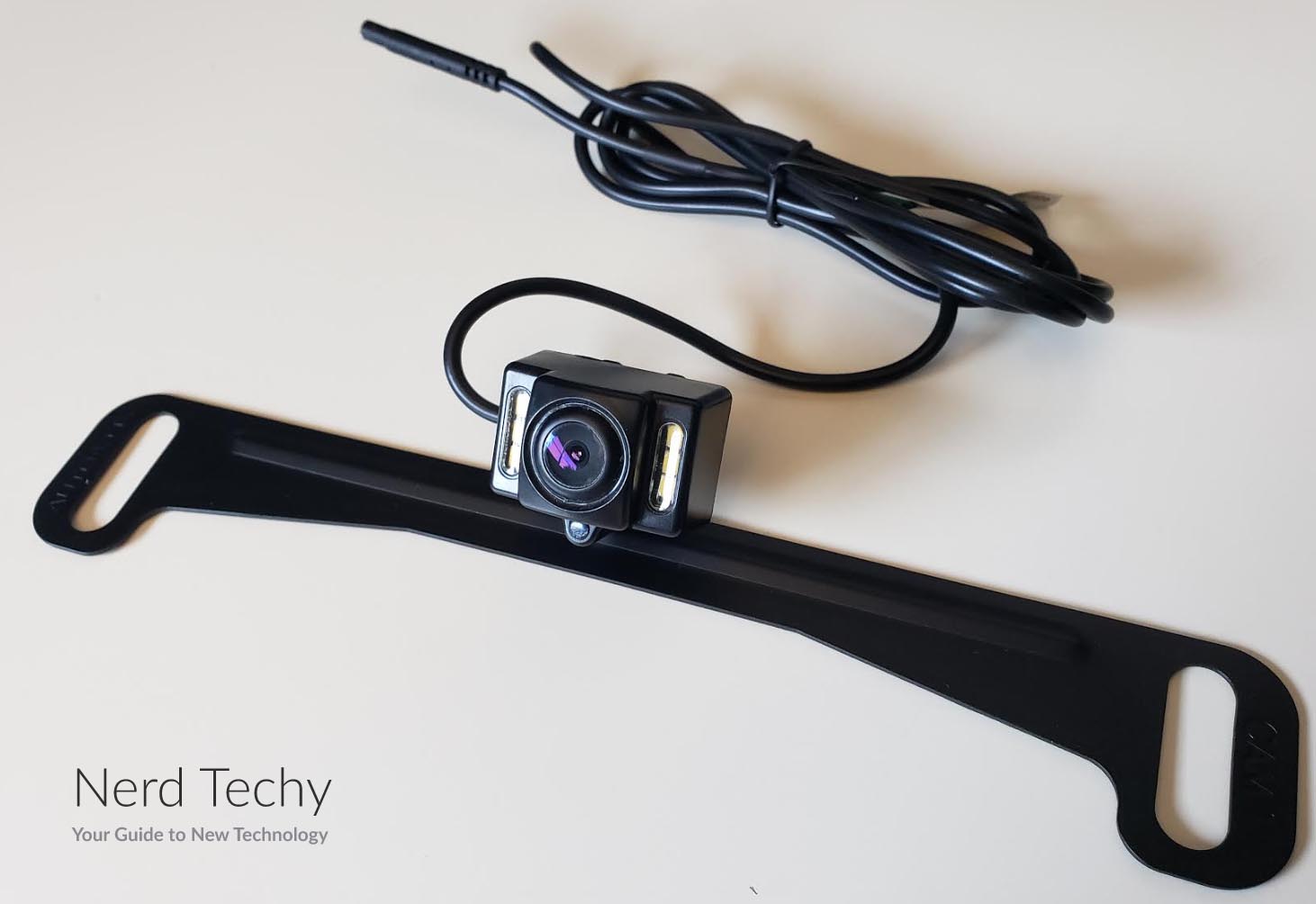

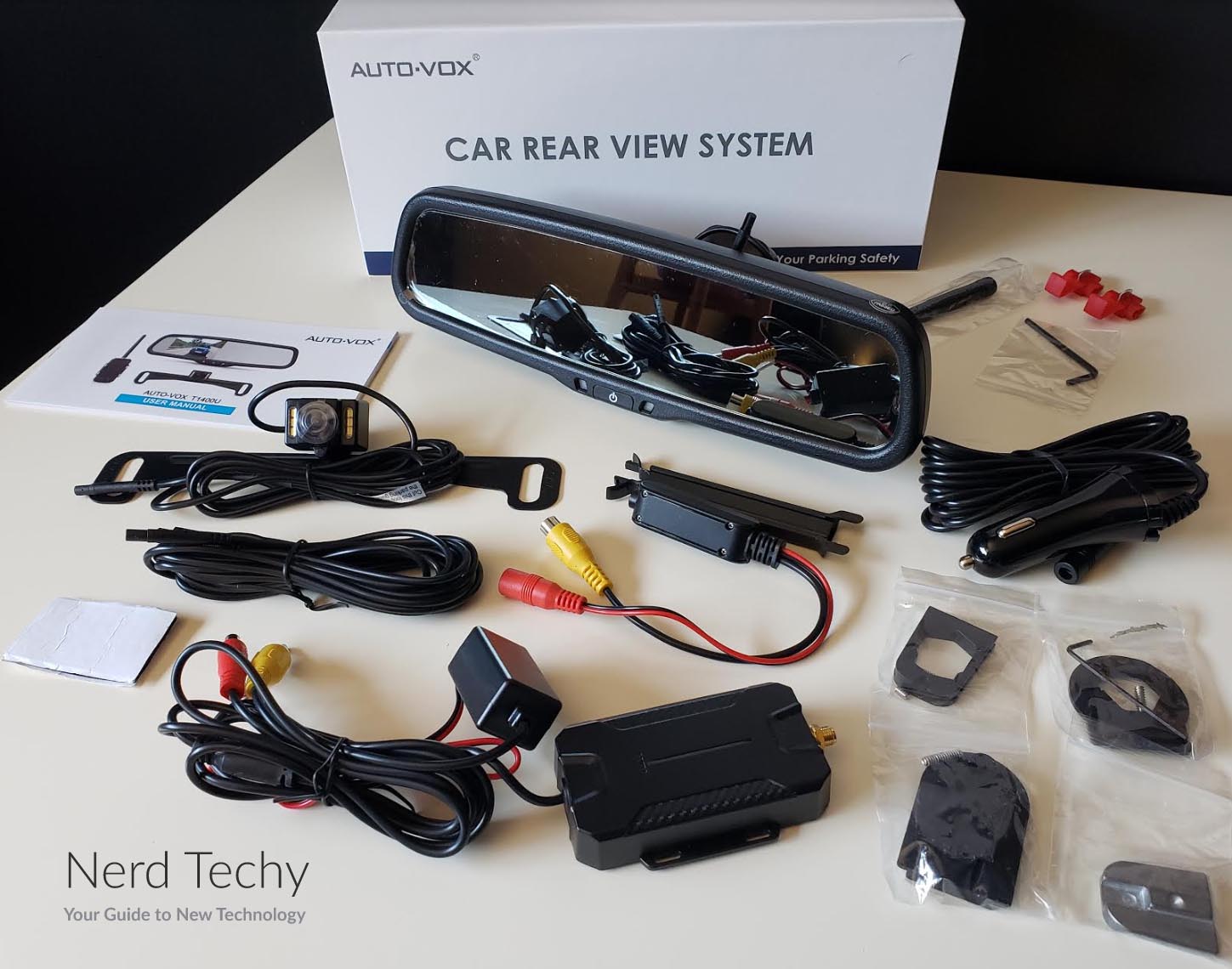

TheAuto-Vox T1400 Wireless Backup Camera Kithas a three-part design. The first is the camera itself, which is mounted on a license plate bracket. The camera has a compact design, barely larger than a keyhole on the back of your trunk. It’s encased in black ABS plastic, with a row of three infrared LEDs on each side. These LEDs are used for the camera’s night vision, which we’ll talk about more in a minute.

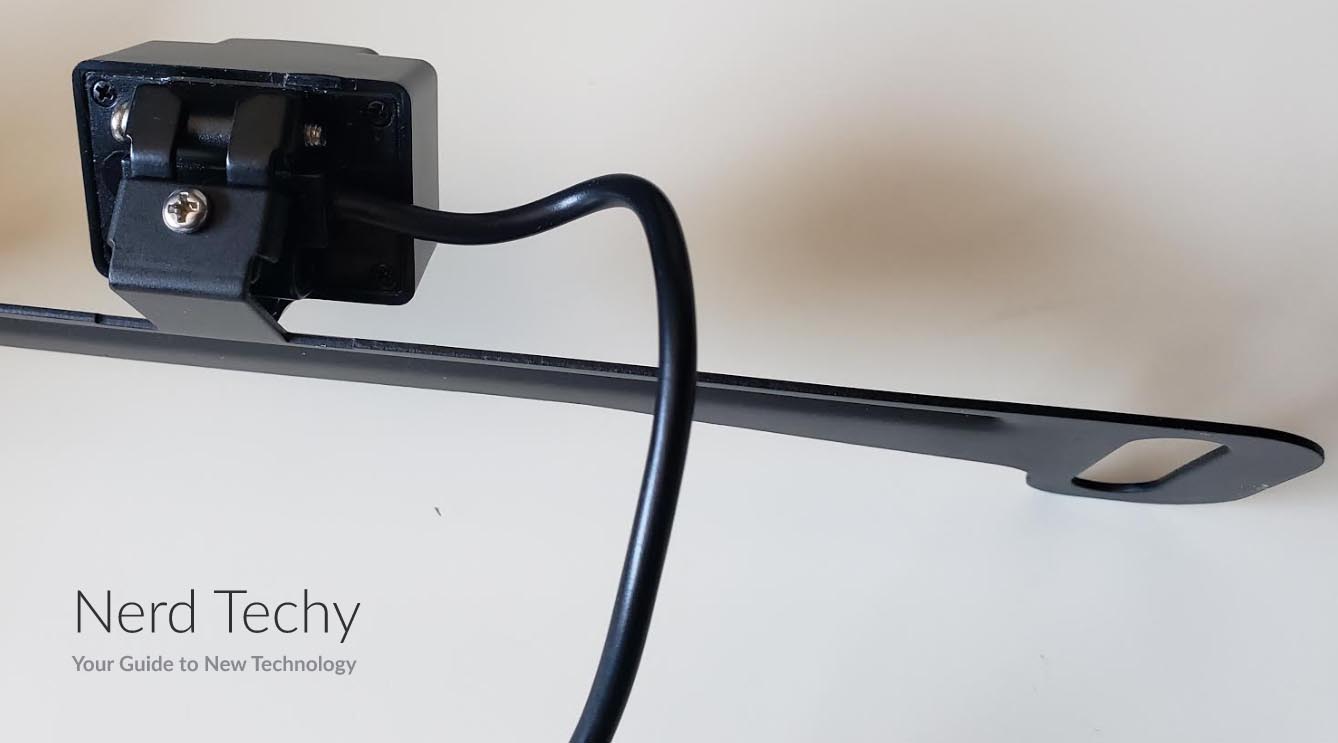

The camera is IP68 water-resistant, which means that it’s capable of withstanding full submersion for up to 30 minutes. Even if you want to take your vehicle four-wheeling, the camera will stand up to the task. Moreover, it functions from -13 to 149 degrees Fahrenheit. In other words, it will work under virtually any circumstances. The mounting bracket is made of black stainless steel, sturdy enough to take a serious beating.

套件的下一部分是无线发射器。该发射器看起来像是一个小对讲机，配有六英寸天线。它是由耐用的聚合物构建的，因此，如果它被撞击或撞击，它将不会容易损坏。另一方面，它不是防水的，但不需要。它旨在安装在您的后备箱或掀背车内，因此它已经受到保护侵害元素。它在天线的底部有一个黄铜连接器环，易于拧紧并拧开。因此，如果天线最终损坏，它将易于更换。

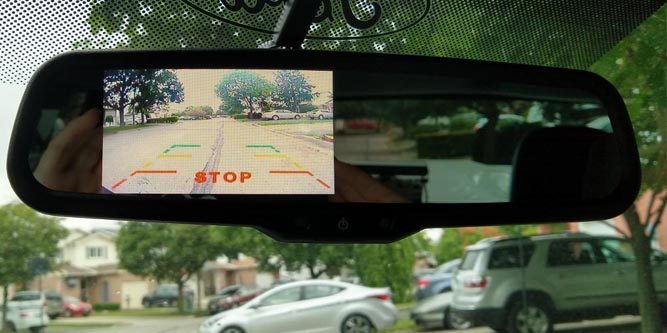

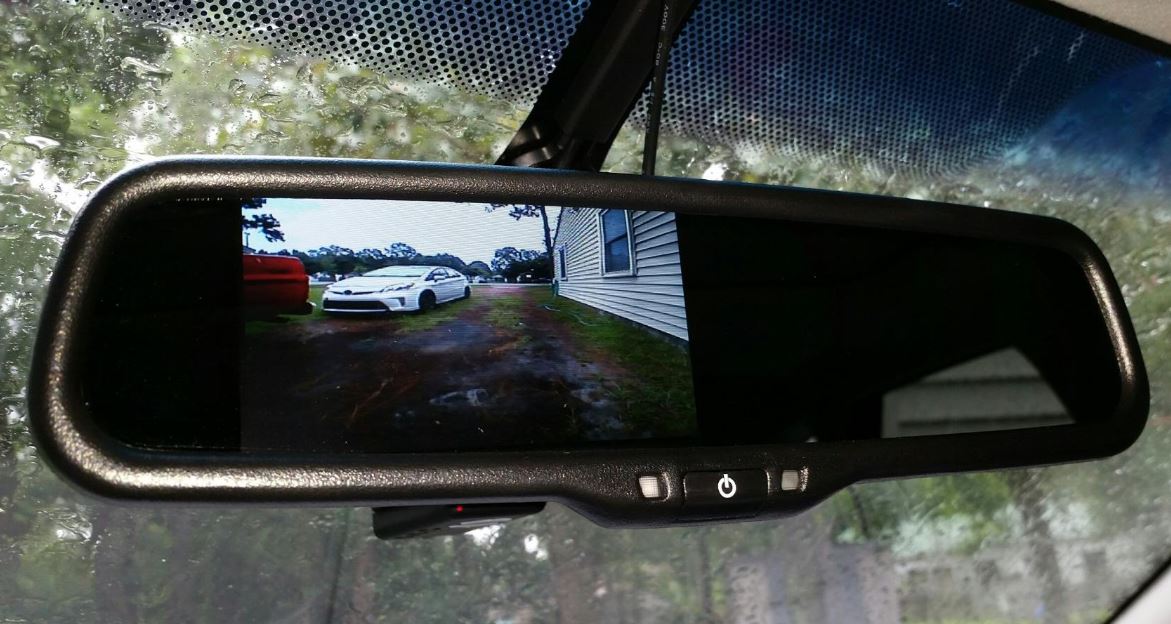

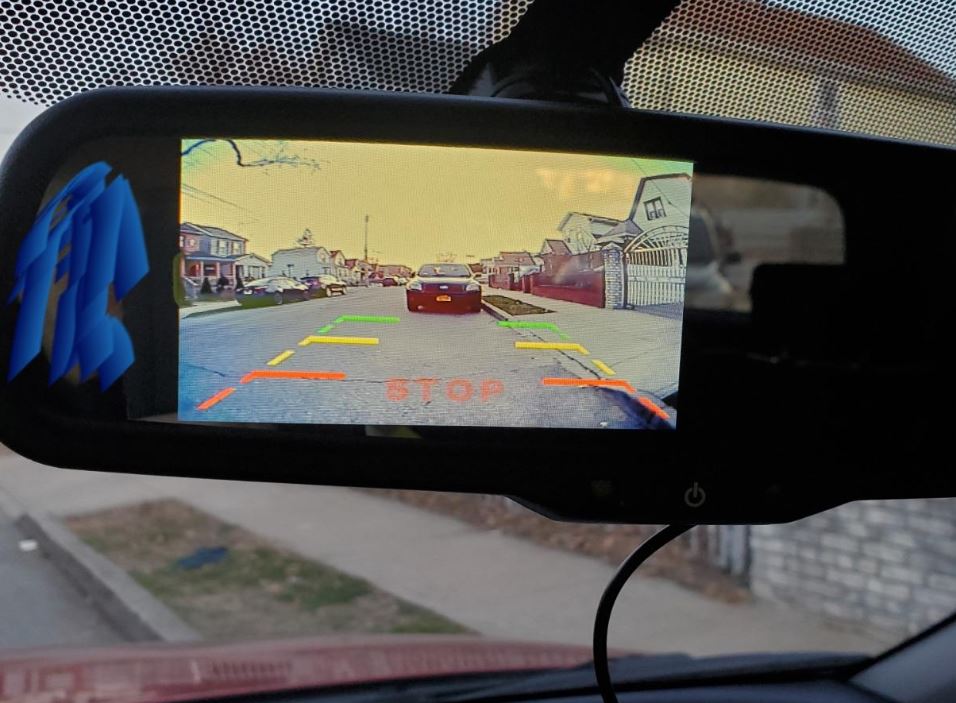

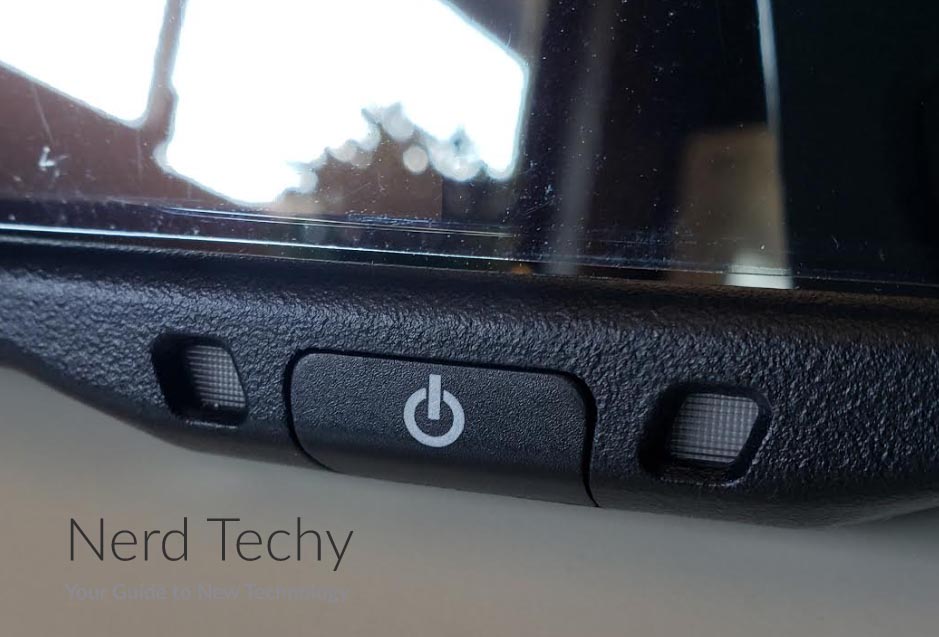

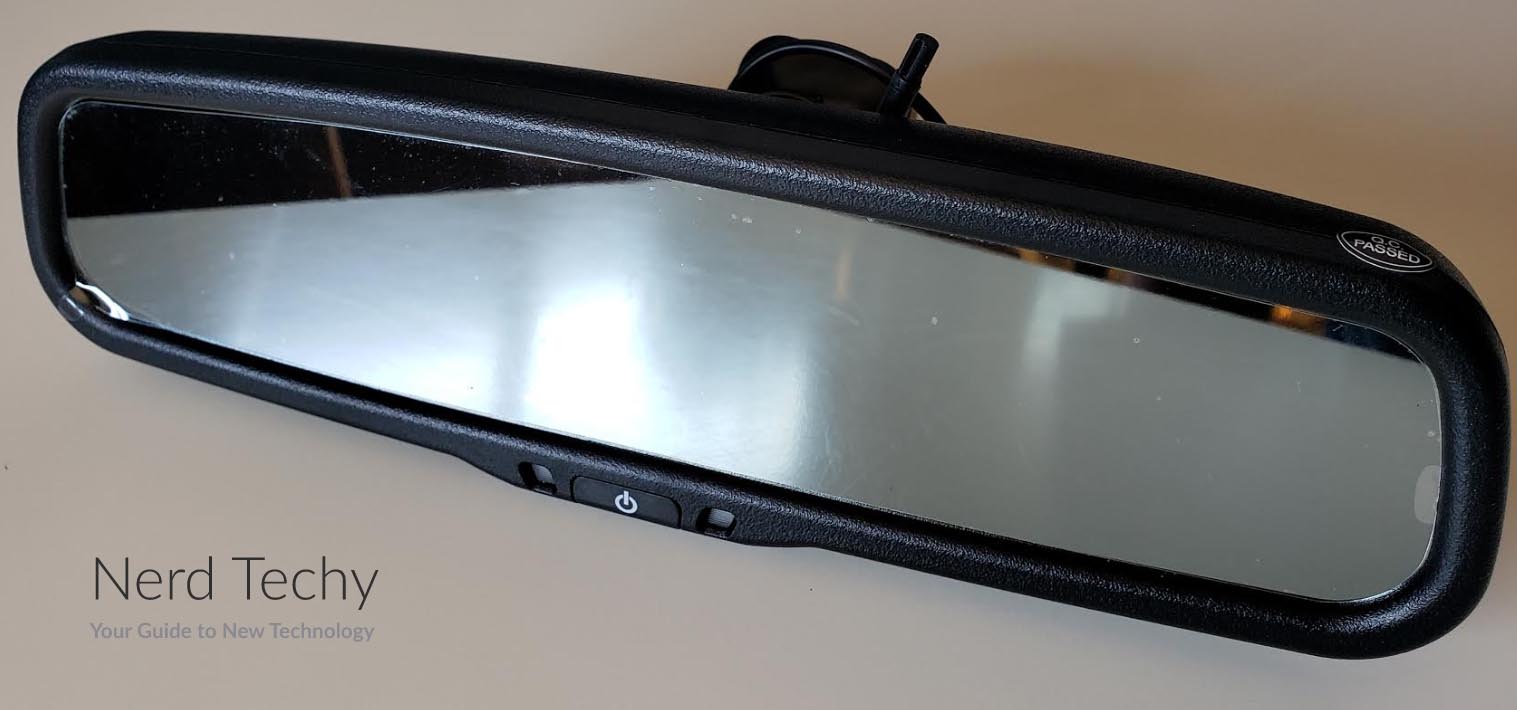

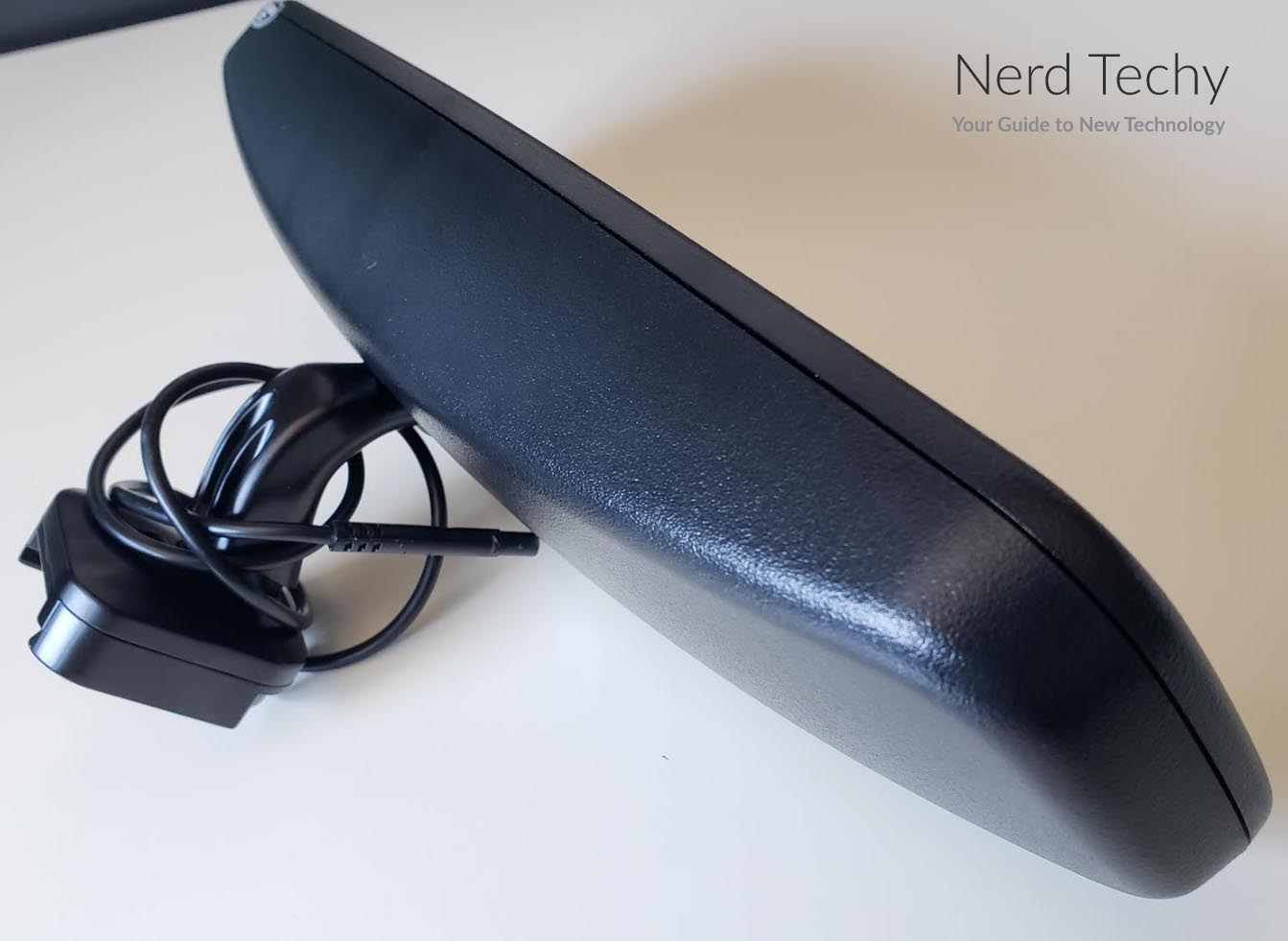

The final part of the T1400 kit is a replacement rearview mirror. It functions as a normal mirror, so you can still use it like one. You can even pivot it to avoid glare and other issues. There’s a small power button near the bottom of the mirror. Press it, and the LCD monitor will activate. The monitor measures 4.3 inches on a diagonal, and occupies most of the left half of the mirror. It reverses the image, just as you’d expect from a backup camera. It also sports backup lines for easy parking. Keep in mind that the backup lines are not adjustable. As a result, if your license plate bracket isn’t centered, you may have some issues.

这种设计易于使用，应该吸引大多数人。但是，您可能更喜欢拥有与后视镜分开的显示器。在这种情况下，请阅读我们对Auto-Vox Solar Wireless Backup Camera Kit。它具有类似的许可证板安装相机，带有仪表板安装的显示器和电动机太阳能电池板。

Use code “JZBPE59B” onAmazon.comfor 10% OFF the Auto-Vox T1400

安装& Storage

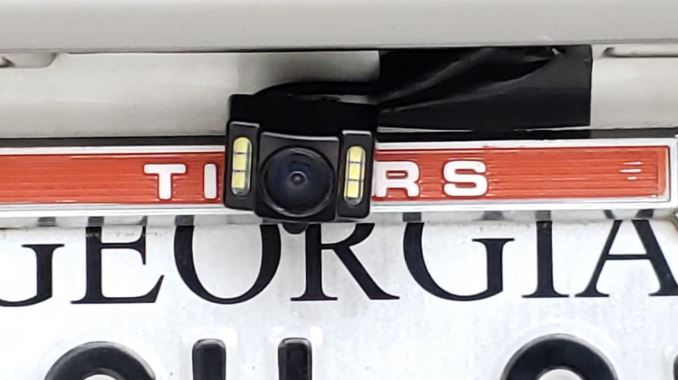

Installing the Auto-Vox T1400 Wireless Backup Camera Kit is relatively simple. You’ll still need to do some wiring. But you won’t have to run a wire all the way from the back to the front. The first step is to install the backup camera itself. Depending on your vehicle, you may need to switch the camera to a different bracket to match the screw holes. Thankfully, there are four brackets in the kit in total, so you’re virtually guaranteed a secure fit. If your license plate screws don’t have nylon washers, it would be a good idea to buy some. They only cost a few pennies, and they do a great job at preventing vibration.

Once you’ve done that, you’ll need to mount the wireless transmitter inside your trunk. You’ve got a bit of leeway here, so choose a location where it’s as out of the way as possible. It’s ideal to screw it into a metal part for security. But if you buy a different set of screws, you can also mount it in plastic or upholstery. Next, use the RCA cables to connect the camera to the wireless transmitter. Unless you want a wire running around the bottom of your trunk, you’ll need to drill a hole to do this.

额外的黑线应连接到任何金属接地螺钉，然后将红色的线连接到您的反向光线。如果您不确定您的反向光线是哪条线，请咨询所有者的手册。每当您的反向光线激活时，这种设计将为您的备用灯和发射机提供电源。相反，它将确保您的相机在不需要时不会绘制电源。发射器将在2.4GHz频段上广播，从而消除了进一步接线的需求。此外，它的理论范围为100米（约333英尺）。这意味着，即使有本地干扰，您仍然会有良好的信号。

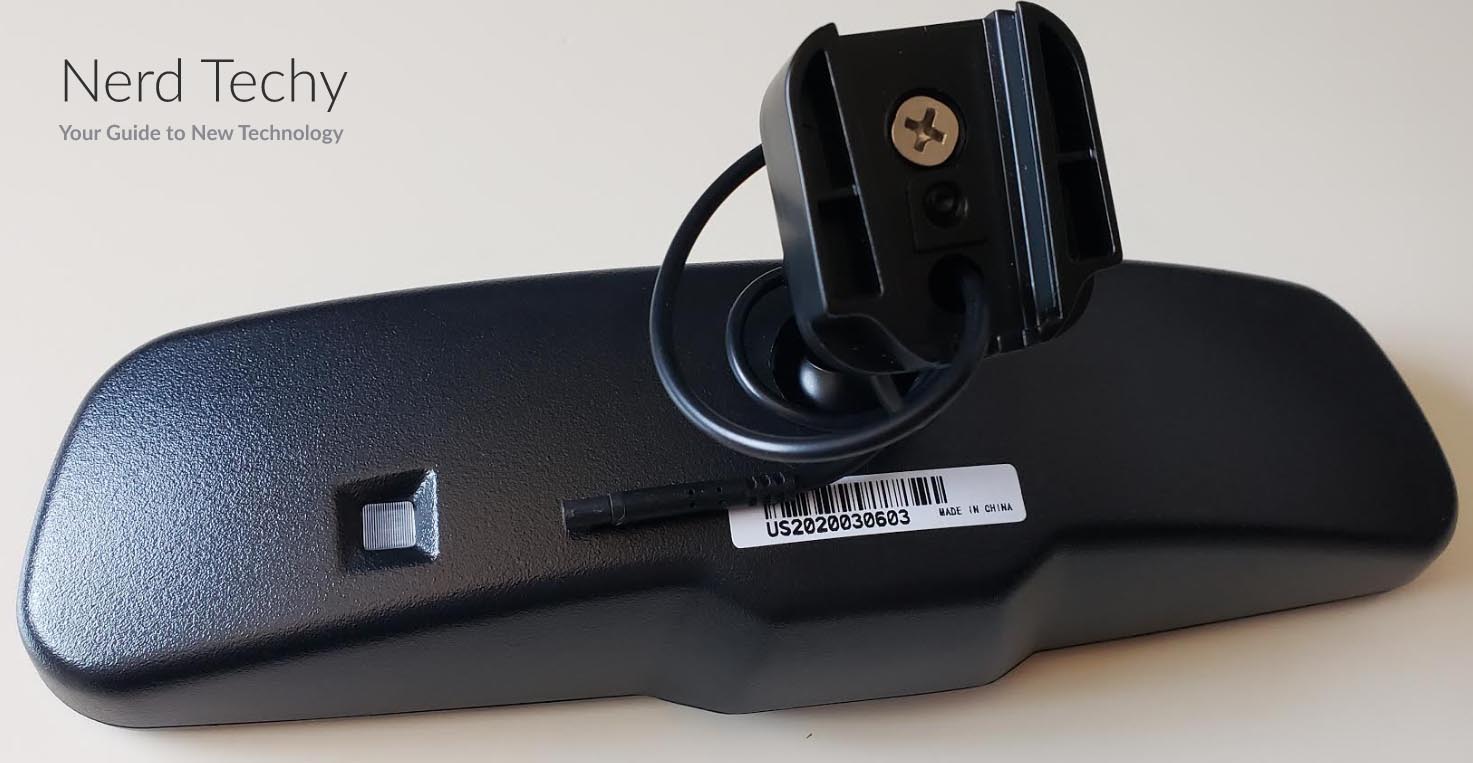

The last step is to install the monitor itself. This means carefully removing your old rearview mirror from its mount. If it doesn’t come off easily, check your manual or an internet guide for instructions. Depending on your vehicle, you may need to replace the mount. The key point here is to use caution, and go slow. Once that’s done, connect the monitor’s wire to your car’s 12-volt power port. It’s best to take the time to tuck it behind your windshield’s trim, so you don’t have a wire dangling around.

One thing the T1400 doesn’t offer is video storage. For most purposes, this shouldn’t be necessary. After all, this is a backup camera, not a dash cam. But if you need recording, consider theAuto-Vox V5 Mirror Dash Cam。It mounts over your mirror without replacing it, and automatically records while in operation. That said, the camera and the monitor need to be hardwired together.

Video Quality & Extras

自动Vox T1400无线备用摄像头的分辨率为480 x 272像素。这是一个非常低的分辨率，不适合阅读车牌或制定细节。也就是说，正如我们已经指出的那样，这是一个简单的备用摄像头。它不是为了读取车牌或捕获高质量录音的设计。它确实提供了170度的视野。如果您在备份时要转弯，例如在平行停车时，这真是太好了。您可以轻松发现垃圾桶，消防栓和其他潜在的障碍物。

The camera’s night vision mode will activate or deactivate automatically. When it’s light out, you’ll see a normal, full color image. When it’s dark, the six LEDs will turn on, and the image will switch to black and white. Either way, you’ll get a clear image at any time of day or night. The screen brightness will also adjust automatically. In daylight conditions, it’s nice and bright, so you don’t have to squint to make out any details. At night, it dims substantially. This way, it won’t blind you and mess up your night vision when it’s turned off.

正如我们前面提到的，T1400的覆盖线无法调节。这可能对某些车辆构成一些问题。如果您有偏心的车牌架，则可能更喜欢Auto-Vox CS-2 Wireless Backup Camera Kit。It requires hardwiring, but allows you to switch between six different overlay light options. On the other hand, it doesn’t have night vision; you’ll rely on your backup lights for illumination.

The Auto-Vox T1400 has one other feature worth mentioning. The 12-volt DC plug sports a USB outlet. As a result, your plug isn’t going to be out of commission. You can still charge your phone, even while using the camera.

在Amazon.com上使用代码“ JZBPE59B”，可享受10％的自动Vox T1400

Final Verdict

显然，Auto-Vox T1400 Wireless Backup Camera Kit有很多东西可以提供。首先，安装比大多数备份摄像头套件更容易。您无需在汽车的整个长度上运行电线。您仍然需要进行一些钻孔和布线，但没有荒谬的侵入性。无线信号非常强，这意味着干扰是非问题的。安装后，您不会注意到差异性能而不是有线相机。

视频质量的叶子有点不满意。那said, video quality isn’t as much of a concern here as it would be with a dash cam. You’re looking at objects that are close to the camera, and for that purpose, it works well enough. Moreover, once installation is done, the design doesn’t clutter up your windshield or dashboard. The display is located inside your new rearview mirror, making it a lightweight solution. The night vision and brightness adjustment are great features, since the camera is suitable for any conditions. Not only that, but it carries the highest water-resistance rating available, and works at almost any temperature.
